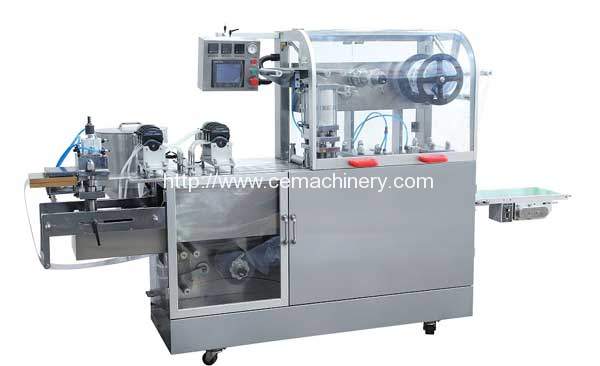

Thermforming Liquid Filling Sealing Packing Machine is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-al, Al-plastic or paper-plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. Liquid thermoforming packing machine is adopted with PLC, frequency converter and touch screen operation. It can automatically finish the processed of feeding, forming, heat-sealing, pressing, batch number printing, punching and so on. It is the ideal packing equipment with convenience operation, full purpose function. The product passed the provincial science and technology appraisal.
Table of Contents
Specification of Thermoforming Liquid Filling Sealing Packing Machine
|Cutting Frequency (Times/min)||6-50|
|Production Capacity (pcs/h)||20000-110000|
|Max. Forming Area And Depth (mm)||140×130×26 (Standard Depth 14mm)|
|Travel Range (mm)||40-140（Can be lengthened to 160mm according to user’s requirements）|
|Standard Plate (mm)||80×57（Can be manufactured as user’s requirements）|
|Air Pressure (Mpa)||0.4-0.6|
|Total Power||380V/220V 50Hz 3.6KW|
|Main Motor Power (KW)||0.75|
|PVC Hard Pieces (mm)||0.15-0.5×150|
|PTP Aluminum Foil (mm)||0.02-0.035×150|
|Dialysis Paper (mm)||50-100g×150|
|Mould Cooling||Tap Water Or Circulating Water|
|Overall Dimensions (mm)||2300×560×1410(L×W×H)|
Note: can customized according to customer requirement.
