Four Lane K-Cup Coffee Capsule Filling Sealing Machine

Table of Contents Feature of Linear K-Cup Coffee Capsule Filling Sealing MachineWorking Process of Linear K-Cup Coffee Capsule Filling Sealing MachineDelivery Package of Linear K-Cup Coffee Capsule Filling Sealing MachineSpecification of Coffee Capsule Filling Sealing MachineWorking Video of Linear Type K-Cup Coffee Capsule Filling Sealing MachineCompany ProfileSend Us Inquiry to Get Quotation ...
  • PRODUCT DETAIL

Linear-type-K-Cup-Coffee-Capsule-filling-sealing-machine

Feature of Linear K-Cup Coffee Capsule Filling Sealing Machine

1. The complete process flow is fully automatic.
2. PLC control can keep the machine work stable.
3. Machine frame use U-steel with Waterproof and rust prevention process, Out packed by Stainless steel #304 .
4. All components are from famous brand company, all of them are produced under strict standards, so their quality are amazing good
5. moving molds are made by Alumite material , extraordinary durable and sanitary.

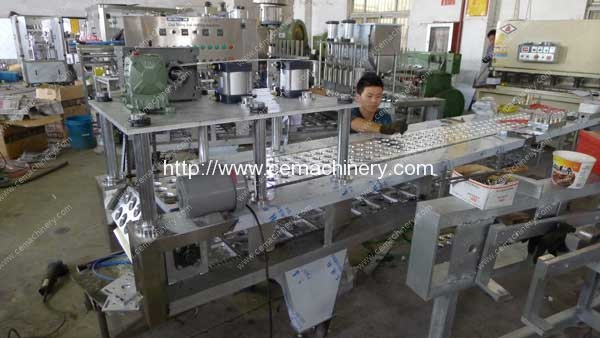

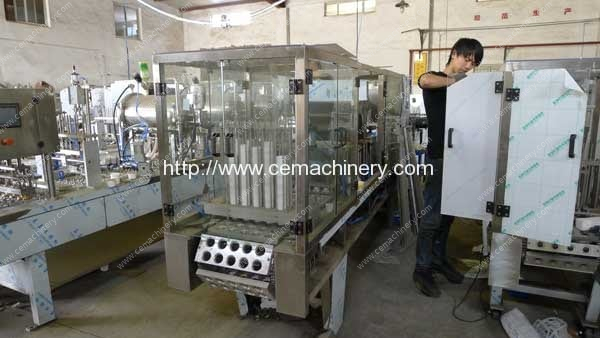

Four-Lane-K-Cup-Coffee-Capsule-Filling-Sealing-Machine Four-Lane-K-Cup-Coffee-Capsule-Filling-Sealing-Machine-2

Working Process of Linear K-Cup Coffee Capsule Filling Sealing Machine

coffee-capsule-falling-of-linear-type-coffee-capsule-filling-sealing-machine

Automatic cup falling

filling-and-tamp-of-linear-type-coffee-capsule-filling-sealing-machine

Filling and tamp

filling-and-tamp-servo-moto-of-linear-type-coffee-capsule-filling-sealing-machine

Absorb-the-spill-outside-coffee-powder-of-linear-type-coffee-capsule-filling-sealing-machine

Absorb the spill outside coffee powder

Inject-nitrogen-of-linear-type-coffee-capsule-filling-sealing-machine

Inject nitrogen before filling,there will be a nitrogen making machine to offer the nitrogen

Pre-cut-foils-loading-of-linear-type-coffee-capsule-filling-sealing-machine

Load the foils by sucker who controlled by a rotate cylinder and 2 liner cylinders

Capsule-sealing-of-linear-type-coffee-capsule-filling-sealing-machine

Sealing head are made of aluminum, with the help of heaters. Sealing temperature can be adjusted between 0°-400° Double sealing.

Delivery Package of Linear K-Cup Coffee Capsule Filling Sealing Machine

 Delivery-Package-of-Rotary-Type-Coffee-Capsule-Filling-Sealing-Machine



Specification of Coffee Capsule Filling Sealing Machine

ModelRML-4RML-8RML-12RML-16
Capacity480096001440019200
ApplicationStandard size of Nespresso, Kcup, Lvazza, etc. filling volume can be adjusted!
Sealing materialplastic roll film and pre-cut aluminum lids(Recommend)
Voltage380V/50Hz/3phases (also can be customized!)
Power2kw/h2.5kw/h4kw/h7.5kw/h
Air pressure0.6-0.95MPa
Air consumption0.65m3/min0.7m3/min0.85m3/min0.95m3/min
Dimension(mm)3000*650*17003100*650*17003200*750*17003200*880*1700
Machine Weight600Kg650Kg750Kg950Kg

Note: we provide customized machine according to customer requirement

Working Video of Linear Type K-Cup Coffee Capsule Filling Sealing Machine

Company Profile

Romiter Group is a market leading designer and a manufacturer of coffee capsule filling sealing machinery, include coffee capsule packing machine, coffee capsules filling sealing machine, nespresso capsules filling sealing machine, k-cup filling sealing machine, lavazza blue capsules filling sealing machine, coffee pod filling sealing machine, coffee pod packing machine, coffee bean roasting machine, coffee capsules carton box packing machine.
