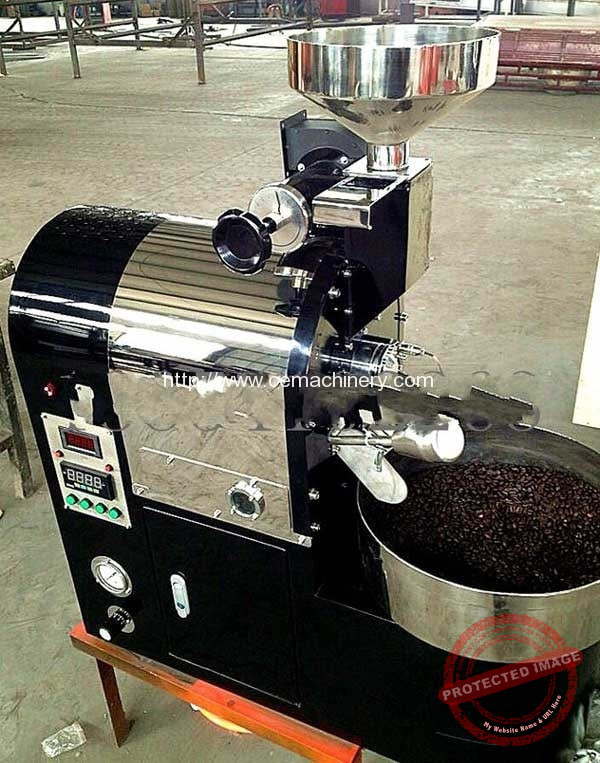

Fully Automatic Coffee Beans Roaster
- PRODUCT DETAIL
Table of Contents
Working Process of Coffee Beans Roaster
Beans Transporter—Baker—Collector—Cooler—Discharger
Application of Coffee Beans Roaster
Coffee Roaster is mainly for Baked beans such as Soya, Peanut,etc. Especially for Coffee baking. It adopts combinative method with fire and hot wind to heat the coffee, which is the advanced processing trends at present. The final production will be of heating evenly, fully swelling, highly extraction concentration, less burnt smell and everlasting taste.
Advantage Features of Coffee Beans Roaster
- Fully computerized automatic control of temperature, baking time, Firepower freely adjusts, and persist stabilization.
- The whole machine is adopted imported cylinder, better stability and lower fault rate.
- Imported PLC of the control system, human-machine interface, simple manipulate.
- Frequency controller to the fan, adjust venting to avoid the fire.
- Distinctive designs on automatic suction machine, adjust the suction height, less resistance to protect the beans in former.
- New type cooling beater, Improve the cooling ability, high efficient.
- Easy maintenance ,low noise, evenly roster with no other odors.
Parameter Table of Coffee Beans Roaster
| Model | Capacity (kg/batch) |
Roasted Time (min/batch) |
Heating Mode | Power (kw) |
Dimension(L*W*H) (mm) |
Feeding Conveyor (kw) |
| 1KG | Max.1.2 | 15-20 | LPG/Natural Gas | 0.165 | 1000*450*1150 (Roaster) | |
| 400*400*1150 (Cyclone) | ||||||
| 3KG | Max.3 | 10-15 | LPG/Natural Gas | 0.37 | 1300*620*1320 (Roaster) | |
| 500*500*1200 (Cyclone) | ||||||
| 6KG | Max. 6 | 15-20 | LPG/Natural Gas | 0.82 | 1550*750*1750(Roaster) | |
| 600*600*1200(Cyclone) | ||||||
| 12KG | Max. 15 | 15-20 | LPG/Natural Gas | 1.74 | 1850*1200*1800(Packing Size) | |
| 1700*900*2000(Roaster) | ||||||
| 650*650*1800(Cyclone) | ||||||
| 20KG | 20 | 15-20 | LPG/Natural Gas | 2.54 | 3000*1900*2000 | |
| 30KG | Max. 30 | 15-20 | LPG/Natural Gas | 3.92 | 2200*1200*2200(Roaster) | 1.5kw |
| 800*800*1000(Feeding Conveyor) | ||||||
| 850*770*1850(Cyclone) | ||||||
| 60KG | Max. 60 | 15-20 | LPG/Natural Gas | 5.4 | 2600*1600*2400(Roaster) | 1.5kw |
| 800*800*1300(Feeding Conveyor) | ||||||
| 850*770*1850(Cyclone) | ||||||
| 100KG | 100 | 15-20 | LPG/Natural Gas | 6 | 2600*1600*2600 | |
| 200KG | 200 | 15-20 | LPG/Natural Gas | 13.5 | 6600*2200*3000 |
Working Video of Coffee Roaster
Company Profile
Romiter Group is a market leading designer and a manufacturer of coffee capsule filling sealing machinery, include coffee capsule packing machine, coffee capsules filling sealing machine, nespresso capsules filling sealing machine, k-cup filling sealing machine, lavazza blue capsules filling sealing machine, coffee pod filling sealing machine, coffee pod packing machine, coffee bean roasting machine, coffee capsules carton box packing machine.
