Cube Sugar Production Line

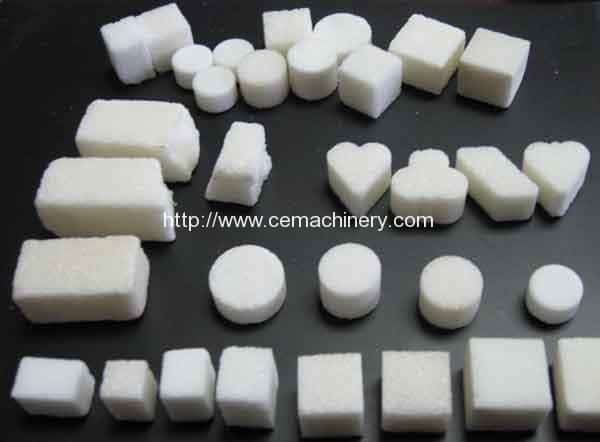

Sugar also said half of sugar, it is with fine grained refined sugar as raw material of compressed into half a square block (that is, half of the cube) advanced products, sugar sugar is the feature of quality pure, white and glossy, candy bars complete edges and corners, a proper solid and firm, not easy to fracture, but quickly dissolved in water, clearer transparent solution.Sugar production is ...
  • PRODUCT DETAIL

Cube-Sugar-Machine

Sugar also said half of sugar, it is with fine grained refined sugar as raw material of compressed into half a square block (that is, half of the cube) advanced products, sugar sugar is the feature of quality pure, white and glossy, candy bars complete edges and corners, a proper solid and firm, not easy to fracture, but quickly dissolved in water, clearer transparent solution.Sugar production is the crystal size of granularity appropriate refined sugar, with a small amount of refined sugar concentration solution (or clean water), become wet sugar contained 1.5 2.5% of water, and then made half a square block molding machine, then through dryer to dry the moisture below 0.5%, packaging after cooling.

Sugar Making Machine Feature

  1. Machine is our latest developed into a sealed automatic clearance of sugar forming machines, machine assembly of high precision, good wear resistance, stable and reliable.
  2. It will be granulated sugar granule raw materials made from compressed square candy bars, after drying oven drying be qualified of sugar.
  3. The machine PIC control, high degree of automation, electrical components can be imported and brand accessories, stable quality, easy maintenance.

Cube Sugar Production line Equipment List

NoNameDescription

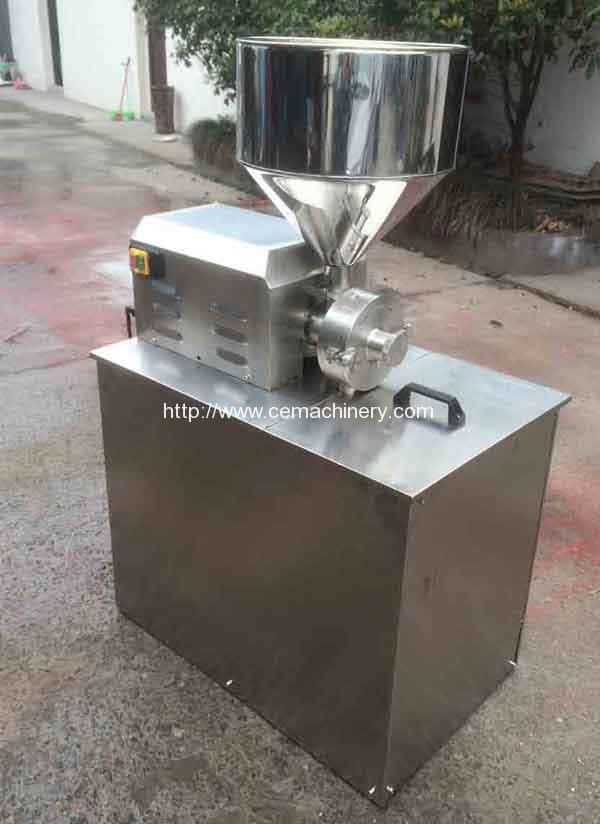

1200 Sugar Crusher

Sugar-Crusher-Machine-for-Cube-Sugar-Production-Line

Capacity:5-70kg/h

Feed size: less than 5mm

Crushing fineness:20-80mesh

Motor power:2.2kw

Dimension:660*420*960mm

Weight:80kg

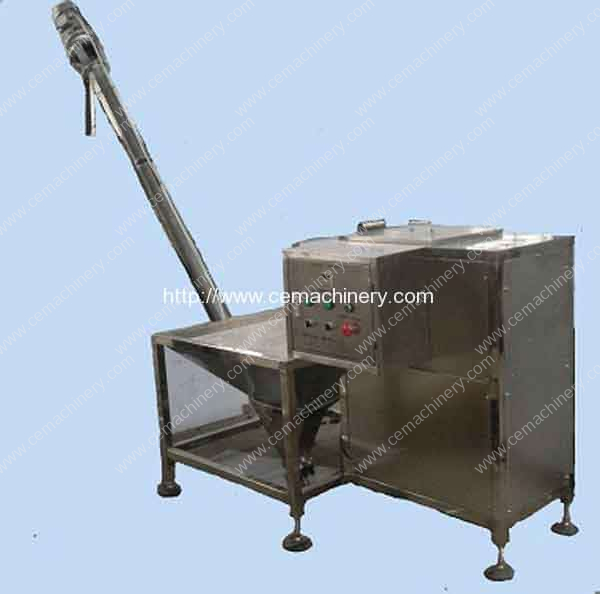

2Mixing and spiral feeding machine

Cooling rack

Mixed-spiral-feeding-machine-for-cube-sugar-making-machine

Function:mixing, automatic feeding

Efficiency:1-3m3/h, infinite speed variation

Motor power:1.5kw

Discharge port from the ground:1700mm

Weight:140kg

Dimension:1100*800*1700mm

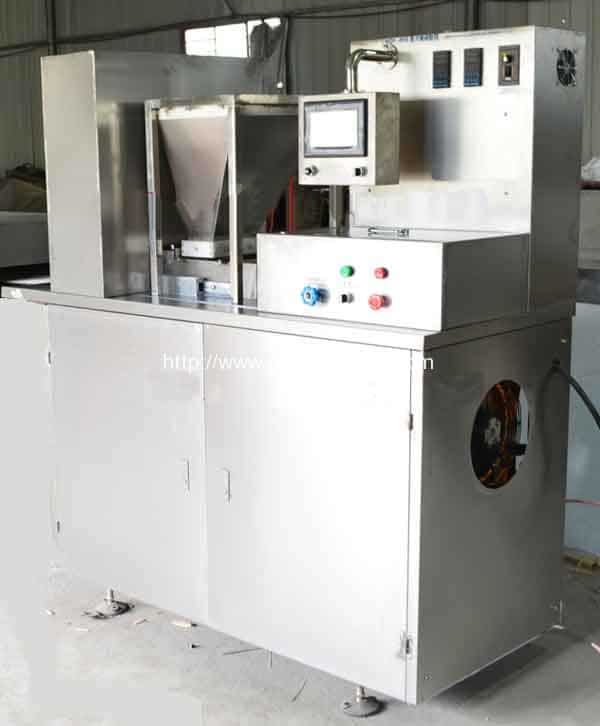

3Forming Machine

Cube-Sugar-Forming-Making-Machine

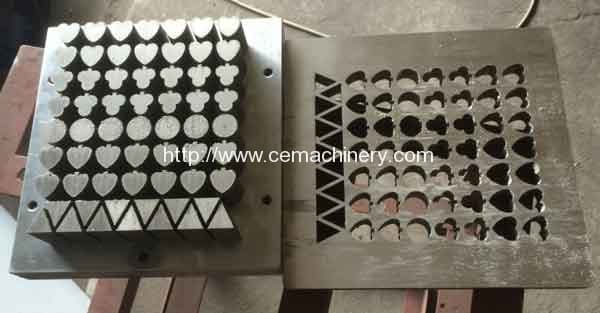

Cube-Sugar-Mould-for-Cube-Sugar-Making-Machine

Capacity:600kg/h

Power:3kw,380V/50Hz

Dimension:1800*750*1750mm

Weight:800kg

PLC control, man-machine interface.

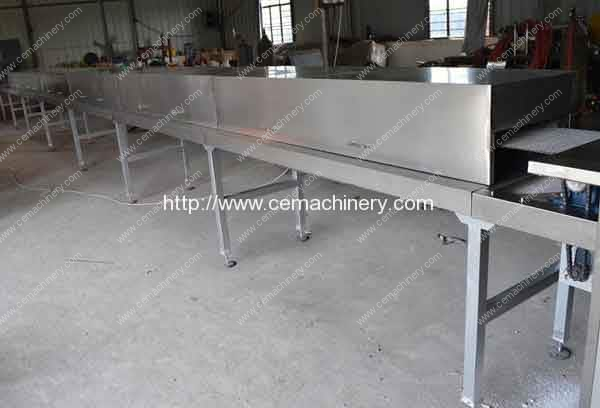

4Drying Oven

infrared-drying-oven-for-cube-sugar-production-line

Function:drying

Capacity:5t/10hours

Voltage:380V/50Hz

Power:20kw

Stainless steel drying rack(box):8

Drying room volume:10cubic

Weight:360kg

5sugar slicing cutting machineEfficiency:Sugar chopped

Capacity:600kg/h

Voltage:220V/380V 50Hz

Power:3kw

Gross weight:260kg

Dimension:2200*600*900mm

6automatic packing machineMax film width:300mm

Bag width:90-200mm

Bag length:50-200mm

Packing speed:700bpm/h

Voltage:380V/50Hz

Power:3.5kw

Consumption:0.3ms/min, 0.6Mpa

Packing capacity:500-1200g

Weight:1100kg

Dimension:1000*800*1700mm

Tablet-linkage-conveyor-for-Cube-Sugar-Making-Machine
