Heat Sealing Net Bag Packing Machine for Vegetable & Fruits

RM series mesh bag packing machines are designed for handling PE mesh film to make bags, suitable for packing fresh vegetable and fruits such as potato, onion, orange, apple, cabbage, pea, carrot, capsicum, pear, lemon, grapefruit, kiwi fruit, rambutan etc.   Feature of Mesh Bag Packing Machine PLC control with touch screen for easy option Servo-driven film transport Hot printer and film feedin ...
  • PRODUCT DETAIL

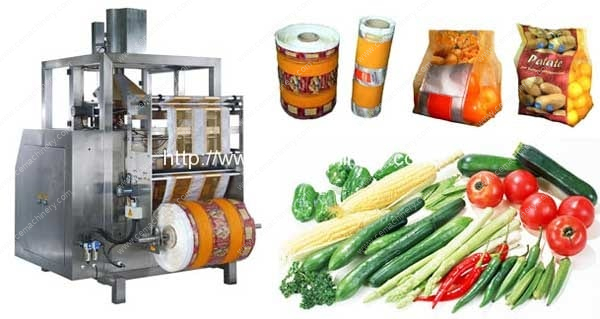

Mesh-bag-packing-machine-for-vegetable-and-fruit

RM series mesh bag packing machines are designed for handling PE mesh film to make bags, suitable for packing fresh vegetable and fruits such as potato, onion, orange, apple, cabbage, pea, carrot, capsicum, pear, lemon, grapefruit, kiwi fruit, rambutan etc.  Potato-Onion-Net-Bag-Packing-Line

Feature of Mesh Bag Packing Machine


  • PLC control with touch screen for easy option
  • Servo-driven film transport
  • Hot printer and film feeding system synchronous
  • Quickly changing one-piece bag former
  • Eye mark sensor for film tracking
Optional devices
  • Hanger hole punch device
  • Material stopper
  • Safety device
  • Bag support
Film type
  • PE-net
  • Film-net combination

Main Technical Data


Model
RM-620
RM-800
RM-1000
RM-1200
Film width
Max.620mm
Max.800mm
Max.1000mm
Max.1200mm
Bag width
110-300mm
160-385mm
240-480mm
290-540mm
Bag length
100-380mm
100-480mm
100-600mm
100-800mm
Air requests
0.36m3/min 0.6Mpa
0.4m3/min0.6Mpa
0.6m3/min 0.6Mpa
0.8m3/min 0.6Mpa
Power supply
220V,50HZ,3KW
220V,50HZ,4KW
220V,50HZ,5KW
220V,50HZ,6KW

Working Video of Heat Sealing Net Bag Packing Machine


Company Profile


Romiter Group offers packing lines for a wide variety of commodities, including potatoes, onions, citrus, stone fruit, green beans, garlic, nuts, cherries, cherry/grape tomatoes, carrots, kiwi and many more. Our staff of project engineers will work with you to design a packing line that maximizes your available space, production requirements and budget. We can supply all required takeaway conveyors, rotary tables and support equipment for a complete line.

HS Code: 84224000

Nowadays, Our main packing line include the following.

  1. Clipping Machine for Potato Mesh Bags Packing Line
  2. Clipping Machine for Onion Mesh Bags Packing Line
  3. Clipping Machine for Potato Mesh Bags Packing Line
  4. Clipping Machine for Stone Mesh Bags Fruit Packing Line
  5. Clipping Machine for Apple Mesh Bags Packing Line
  6. Clipping Machine for Carrot Mesh Bags Packing Line
  7. Clipping Machine for Stem Cherry Mesh Bags Packing Line
  8. Clipping Machine for Garlic Mesh Bags Packing Line
  9. Clipping Machine for Grape Mesh Bags Tomato Packing Line
  10. Clipping Machine for Orange Mesh Bags Packing Line
